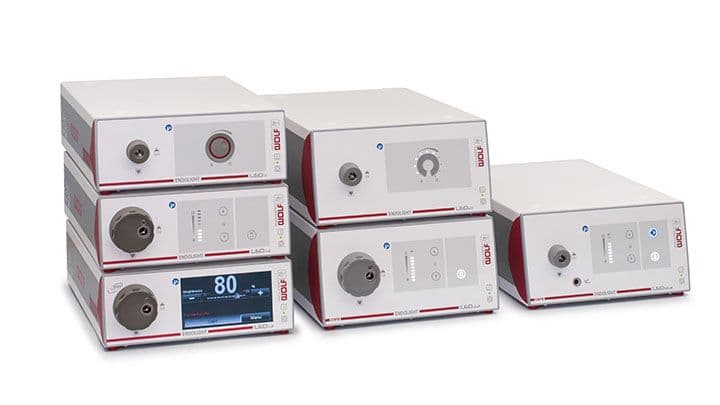

ENDOLIGHT LED Light Sources

ENDOLIGHT LED light sources are designed for endoscopic applications and suitable for interdisciplinary use.

Available with different technologies, performance classes and device models.

Advantages at a glance

Extremely long service life – up to 30,000 hours or more

Constant light intensity throughout the service life

Low LED power consumption, very little heat generated inside the unit

Almost silent – one of the quietest light sources on the market

Anti-glare protection when the light cable is unplugged

Even illumination of the endoscopic surgical field

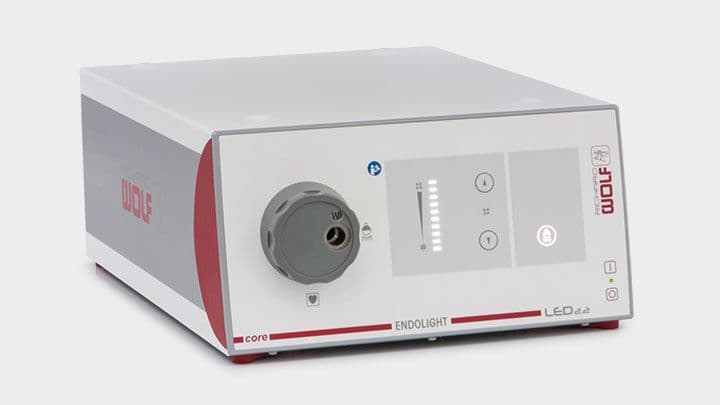

ENDOLIGHT LED 2.2
- 80% lower power consumption than xenon light sources
- Plug and play
- Silent cooling with passive heat pipes
- Safe start function: if the operating voltage is interrupted, the ENDOLIGHT LED 2.2 returns to normal operating mode within a very short time. If the interruption lasts longer than 5 seconds, the unit switches to safe start mode and only lights up again after the user confirms.
- Multiple connections for light cables from different manufacturers
- Dialog function between camera controller and ENDOLIGHT LED 2.2 for automatic brightness control and switching the light source on and off
- Compatible with core nova

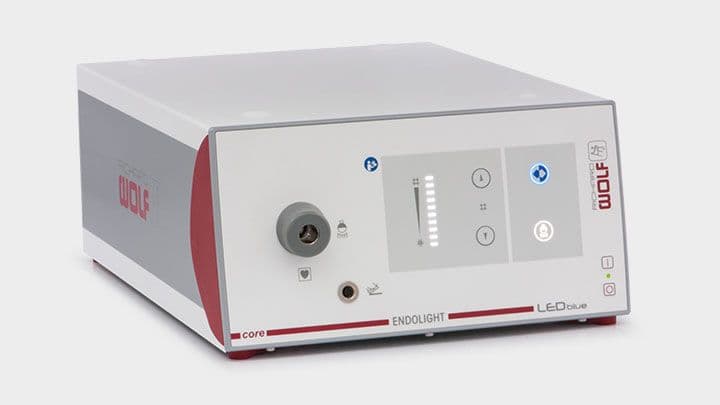

ENDOLIGHT LED blue
- LED PDD light source
- Very high color contrast for effective differentiation of tumor tissue
- Can be used for any type of white light endoscopy
- 80% lower power consumption than xenon light sources
- Plug and play
- Silent cooling with passive heat pipes
- Greatly reduced costs: the light socket is optimized for Richard Wolf light cables.
- Compatible with core nova

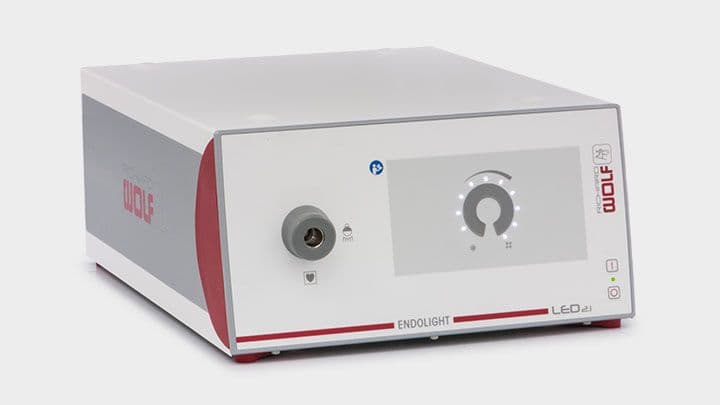

ENDOLIGHT LED 2.1
- 80% lower power consumption than xenon light sources
- Plug and play
- Silent cooling with passive heat pipes
- Safe start function: after an interruption, the unit switches to standby mode and only lights up again after the user confirms.
- Light intensity can be set using the keypad on the front of the unit
- Greatly reduced costs: the light socket is optimized for Richard Wolf light cables.

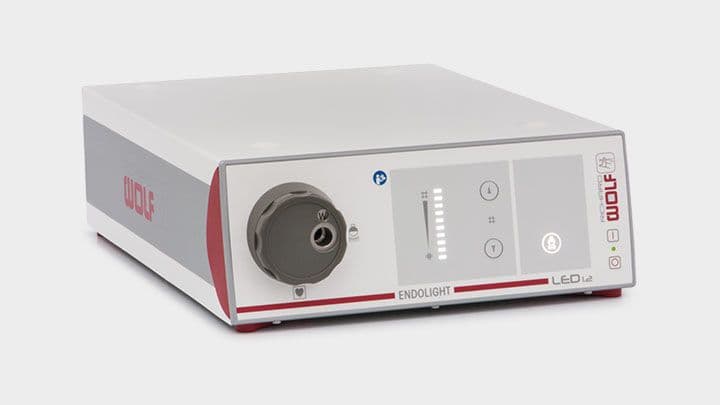

ENDOLIGHT LED 1.2
- Plug and play
- Extremely quiet, almost silent light source
- Safe start function: if the operating voltage is interrupted, the ENDOLIGHT LED 1.2 returns to normal operating mode within a very short time. If the interruption lasts longer than 5 seconds, the unit switches to standby mode.
- Multiple connections for light cables from different manufacturers
- Key brightness adjusts automatically to ambient light for good readability at all times, without glare.

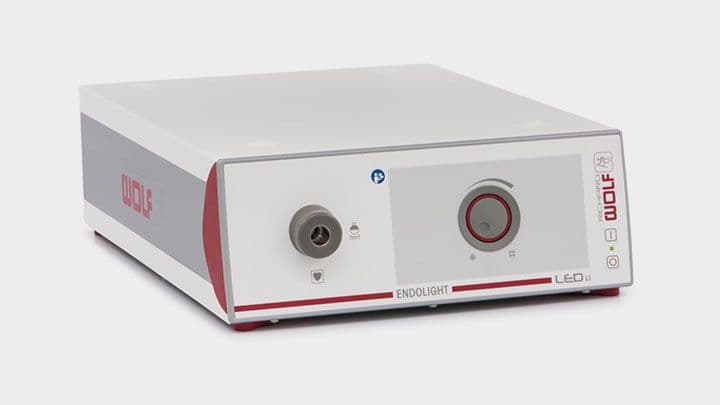

ENDOLIGHT LED 1.1
- Plug and play
- Light intensity can be set using the dial on the front of the unit
- Extremely quiet, almost silent light source
- Greatly reduced costs: the light socket is optimized for Richard Wolf light cables.

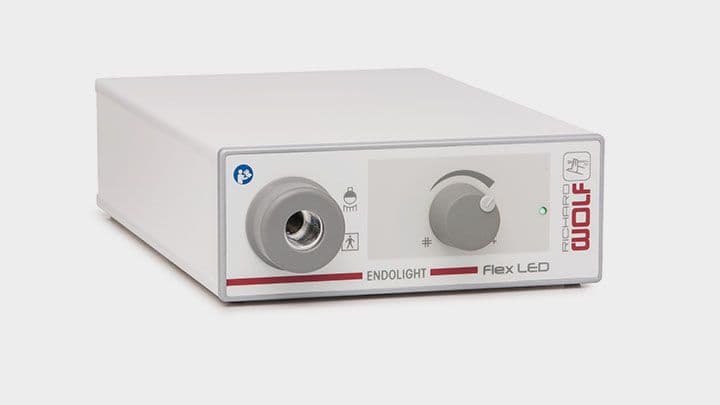

ENDOLIGHT Flex LED
- Compact design – minimal space required
- LED lamp – extremely long service life
- Ventilation concept – low noise
- Wolf light cable connection
- Optional: bracket for mounting the light source on the monitor
